Grundfos UPA15-90 N 160 (96621403)
Producto ID: 96621403
Solicitud de precio y disponibilidad
Grundfos UPA15-90 N 160 (96621403)
Applications
|
|
|
Features and benefits
New built-in flow switch The new unique and patented built-in flow switch automatically starts the pump when a tapping point is turned on, thereby increasing the water pressure. When the tap is closed, the flow switch immediately stops the pump. Compact design The compact design makes the UPA 120 perfect for installation even in confined spaces.
Automatic start/stop The built-in flow switch automatically starts and stops the pump according to demand to ensure the required water pressure.
Easy to install The UPA 120 with the new built-in flow switch is very easy to install. It is virtually a plug-and-pump solution.
Silent operation Built on the high-quality wet-runner technology the UPA 120 offers smooth and silent operation, making it a popular choice in private homes.
| Specification | Value | |
|---|---|---|
| Líquido: | ||
| Líquido bombeado: | Agua | |
| Rango de temperatura del líquido: | 2 .. 95 °C | |
| Liquid temperature during operation: | 60 °C | |
| Densidad: | 983.2 kg/m³ | |
| Técnico: | ||
| Clase TF: | 95 | |
| Homologaciones en placa: | CE,WEEE | |
| Materiales: | ||
| Cuerpo hidráulico: | Acero inoxidable | |
| Impulsor: | Material compuesto de PP | |
| Instalación: | ||
| Presión de trabajo máxima: | 10 bar | |
| Diámetro de conexiones: | 3/4 | |

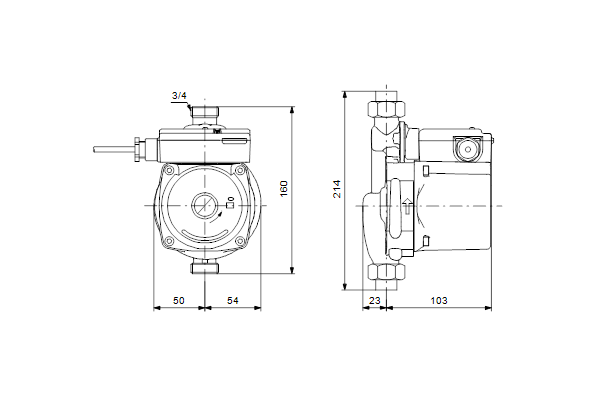

| (@): | 160 mm | |
| Datos eléctricos: | ||
| Potencia de entrada en velocidad 3: | 120 W | |
| Frecuencia de alimentación: | 50 Hz | |
| Tensión nominal: | 1 x 230 V | |
| Corriente en velocidad 3: | 0.48 A | |
| Tamaño condensador - Funcionamiento: | 2.5 µF | |
| Grado de protección (IEC 34-5): | X2D | |
| Clase de aislamiento (IEC 85): | H | |
| Otros: | ||
| Peso bruto: | 2.7 kg | |
| Volumen: | 0.004 m3 | |
