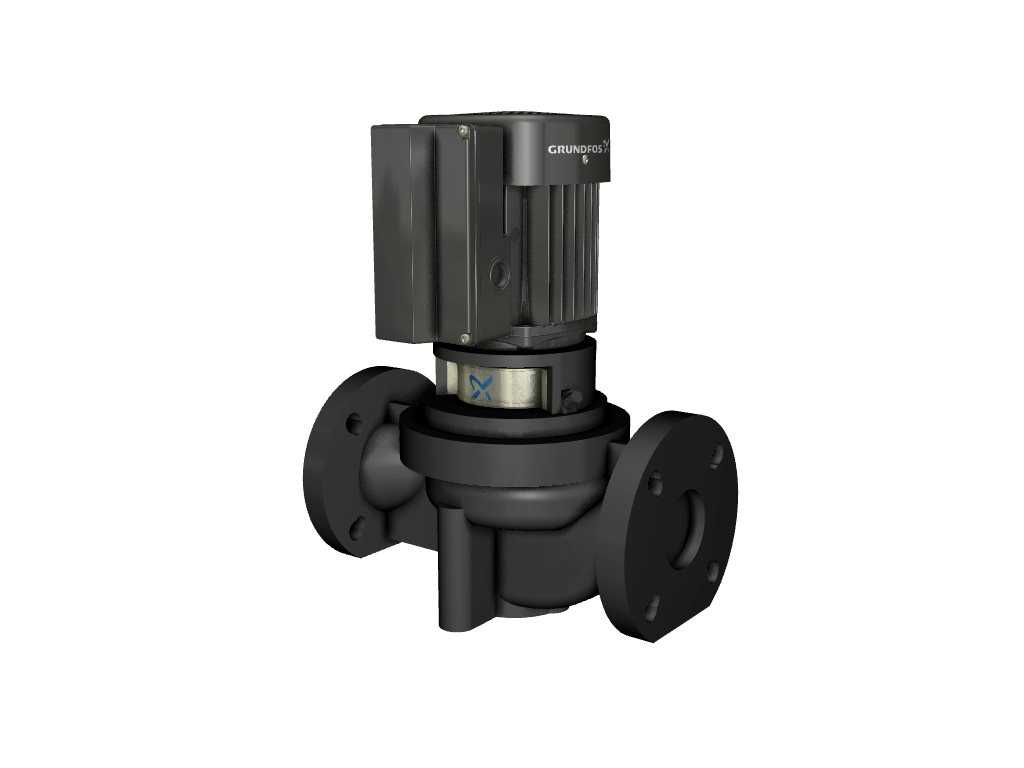

Grundfos TP 65-30/4 A-F-A-BQQE (98957986)
Producto ID: 98957986
Solicitud de precio y disponibilidad
Grundfos TP 65-30/4 A-F-A-BQQE (98957986)
Grundfos TP 65-30/4 A-F-A-BQQE (98957986)
| Specification | Value | |
|---|---|---|
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | -25 .. 120 �?°C | |
| Liquid temperature during operation: | 20 �?°C | |
| Density: | 998.2 kg/m�?³ | |
| Technical: | ||
| Speed for pump data: | 1450 rpm | |
| Rated flow: | 21.4 m�?³/h | |
| Rated head: | 2.01 m | |
| Actual impeller diameter: | 95 mm | |
| Primary shaft seal: | BQQE | |
| Curve tolerance: | ISO9906:2012 3B | |
| Materials: | ||
| Pump housing: | Cast iron | |
| EN-JL1040 | ||
| ASTM A48-40 B | ||
| Impeller: | Stainless steel | |
| DIN W.-Nr. 1.4301 | ||
| AISI 304 | ||
| Installation: | ||
| Range of ambient temperature: | -30 .. 40 �?°C | |
| Maximum operating pressure: | 10 bar | |
| Flange standard: | DIN | |
| Pipe connection: | DN 65 | |
| Pump inlet: | DN 65 | |
| Pump outlet: | DN 65 | |
| Pressure rating: | PN 6/10 | |
| Port-to-port length: | 340 mm | |
| Flange size for motor: | FT85 | |
| Electrical data: | ||
| Motor type: | 71B | |
| Rated power - P2: | 0.25 kW | |
| Power (P2) required by pump: | 0.25 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 1 x 220-230 V | |
| Rated current: | 2.14 A | |
| Starting current: | 220 % | |
| Cos phi - power factor: | 0,97 | |
| Rated speed: | 1350-1370 rpm | |
| Motor efficiency at full load: | 57.0-55.0 % | |
| Number of poles: | 4 | |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting | |
| Insulation class (IEC 85): | F | |
| Others: | ||
| Minimum efficiency index, MEI â�?¥: | 0.70 | |
| ErP status: | EuP Standalone/Prod. | |
| Net weight: | 35 kg | |
| Gross weight: | 38.6 kg | |
| Shipping volume: | 0.16 m�?³ | |
