Testomat medida on line de dureza en agua

Control automático de la dureza


El Testomat determina automáticamente la dureza residual/ total por titulación. Ideal para comprobar la calidad del agua a la salida de sistemas de ablandamiento, mezcladores o de sistemas de potabilización del agua.

Testomat ECO

Titulación exacta con bomba de dosificación de pistón, con indicación del valor de dureza medido. Dos límites ajustables con funciones de interruptores programables.

Datos técnicos:

  • Presión de operación max. 1-8 bar
  • Temperatura de operación 10-40°C,
  • Establecimiento automático de intervalos de tiempo (0-99 min)
  • Soluciones indicadoras en botellas de 500ml
  • 230V 50Hz.
  • H x L x D: 480 x 380 x 280 cm
  • Peso aprox. 9,5 kg
  • IP rating: IP65
  • Datos técnicos

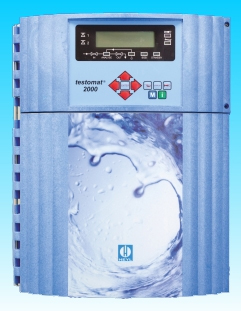

Testomat 2000

El Testomat 2000 puede determinar también la dureza en carbonato, el valor p del agua.
Dos ingresos de agua separados para supervisar múltiples instalaciones.

Datos técnicos:

  • Presión de operación max 1-8 bar
  • Temperatura de operación 10-40°C,
  • Establecimiento automático de intervalos de tiempo (0-99 min)
  • Soluciones indicadoras en botellas de 500ml
  • 230V 50Hz.
  • H x L x D = 480 x 380 x 280 cm
  • Peso aprox. 10,5 kg
  • IP rating: IP65
  • Datos técnicos

Cotización directa

The Testomat Family

Testomat 2000: Automatically determines the residual or total water hardness, the carbonate hardness, the p-value or the minus-m-value via titration. The 2000 can measure two individual measuring points.

Testomat 2000 DUO: This analysis instrument enables the measurement of two different parameters simultaneous, e.g. two different measuring ranges for water hardness.

Testomat 2000 CAL: This Testomat correspond in function and suitability to the Testomat 2000, but has an additional calibration function in order to balance possible interference.

Testomat Eco: This Testomat is "the good value alternative" for the Testomat 2000, it determines through titration the water hardness from a single measurement point. The Testomat Eco or Testomat 2000 replace the Testomat F-bob

Testomat 2000 V: This Testomat version, in combination with a 3/2-way-motor operating valve is an easy to use control system for water blending plant

Testomat 2000 CLT: The process-photometer Testomat 2000 CLT is a wet-chemical online instrument for monitoring the content of total chlorine in the 0–2.5 mg/l (ppm) range and it can be switched to free chlorine.
• Analysis via automatic dosing of 3 reagents; the analysis result is displayed after a reaction time of approx. two minutes
• Application areas: Monitoring of chlorination plants for drinking water or swimming pools– Provides protection for reverse osmosis membranes.

Testomat 2000 CLF: The process-photometer Testomat 2000 CLF is a wet-chemical online instrument for monitoring the content of free chlorine in the0–2.5 mg/l (ppm) range.

Testomat 2000 THCL: The process photometer Testomat 2000 THCL determines the content of total chlorine in the 0 to 2.5 mg/l (ppm) range using the colorimetric analysis principle and the existing water hardness via titration.

Testomat Fe: The process photometer Testomat 2000 Fe is a wet-chemical online monitor for monitoring the content of dissolved iron (II) + (III) in the 0 to 1.0 mg/l (ppm) range using the colorimetric method.
• Dosing of 2 reagents and display of the analysis value after a reaction time of approx. 7 minutes (absolute measuring time without flushing times)

Model

Measuring range

° dH

Ambient temperature

°C

Operating pressure

bar

Water inlet OD

mm

Water outlet OD

mm

Dimensions

B x H x T

mm

Weight

Kg

Application

Testomat 808 0.02 - 3 10 - 40

0.3 - 1

1 - 4

6 6 364 x 314 x 138 4,35

reverse osmosis
water softening

pure water

galvanization

Testomat ECO 0.05 - 25 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9 water treatment
drinking water
Testomat ECO C

0.5 - 10.0 carbonate hardness

1.0 - 20.0 acid capacity

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9

water treatment
drinking water

swimming pools

Testomat EVO TH 0.05 - 25 10 - 40

0.3 - 1

1 - 8

6 12 ID 380 x 480 x 280 9

water treatment
industrial boilers

monitoring proceswater

drinking water

Testomat 2000

0.05 - 25 water hardness

0.5 - 20 carbonate hardness

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

water treatment
water blending

drinking water

watersoftening

decarbonization

desalination

boiler houses

cooling towers

Testomat 2000 CN

0.05 - 25 water harness

0.5 - 20 carbonate hardness

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

water treatment
water blending

drinking water

watersoftening

decarbonization

desalination

boiler houses

cooling towers

Testomat 2000 CAL

0.05 - 25 water hardness

0.5 - 20 carbonate hardness

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

control water quality

pharmaceutical industry

Testomat 2000 V

1.0 - 25 water hardness

1.0 - 20 carbonate hardness

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

water blending

process water

Testomat 2000 self clean

0.05 - 25 water hardness

0.5 - 20 carbonate hardness

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

difficult water, calcium, biofilms

extending life

reducing contamination

Testomat 2000 Antox

0.05 - 25 water hardness

0.5 - 20 carbonate hardness

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

control of water quality

can arise due to oxidizing agents

Testomat 2000 DUO

0.05 - 25 water hardness

0.5 - 20 carbonate hardness

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

use two circuits for diferent hardness

measurment inlet - outlet

Testomat 2000 DUO CN

0.05 - 25 water hardness

0.5 - 20 carbonate hardness

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

use two circuits for diferent hardness

measurment inlet - outlet

Testomat 2000 CLF free chlorine 0.0 - 0.99  / 1.0 - 2.5 mg/l 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

monitoring chlorination

drinking water

swimming pool water

Testomat 2000 CLT free chlorine 0.0 - 0.99  / 1.0 - 2.5 mg/l 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

monitoring chlorination

drinking water

swimming pool water

protection RO membranes

Testomat 2000 CLT self clean free chlorine 0.0 - 0.99  / 1.0 - 2.5 mg/l 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

monitoring desinfection

drinking water

process water

Testomat 2000 CLO2 0 - 1.88 / 1.0 - 4.7 mg/l 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

monitoring desinfection

drinking water

process water

Testomat 2000 THCL

free chlorine 0.0 - 0.99 mg/l /

0.25 - 2.50 water hardness

10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

dialysis

corrosion protection

protection RO membranes

monitoring drinking water /swimming pools

Testomat 2000 Br 0 - 2.23 / 2.3 - 5.6 mg/l 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5 monitoring dosing disinfectants
Testomat 2000 CrVl chromate 0.0 - 0.99 / 1.0 - 2.0 mg/l 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

monitoring chromate

control of waste water

Testomat 2000 Fe 0.0 - 0.65 / 0.7 - 1.0 mg/l 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

monitorig removing iron

control drinking water

Testomat 2000 Polymer 0.0 - 50.0 mg/l 10 - 45

0.3 - 1

1 - 4

6 6 380 x 480 x 280 9,5 monitoring conditioning cooling and heating
Testomat 2000 PO4 0.0 - 10.0 mg/l 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

process water

water purification

waste water treatment

Testomat 2000 SO3 sulfite 0.0 - 9.9 / 10 - 20 mg/l 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

monitoring sulfite for oxygen binding

boiler water

Titromat KH

5 - 150 °KH

2 - 60 °KH

10 - 45

0.3 - 1

1 - 4

6 6 380 x 480 x 280 9,5 alkalinity of coolant circuits
Titromat M1 0.05 - 1.0 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

monitoring corrosion boiler water

decarbonization

Titromat M2 0.05 - 2.0 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

monitoring corrosion boiler water

decarbonization

Titromat TH 2.5 - 50.0 10 - 45

0.3 - 1

1 - 8

6 6 380 x 480 x 280 9,5

drinking water

raw water

Indicators and Reagents

Overview Testomat Analyzers

Overview Titromat Analyzers
